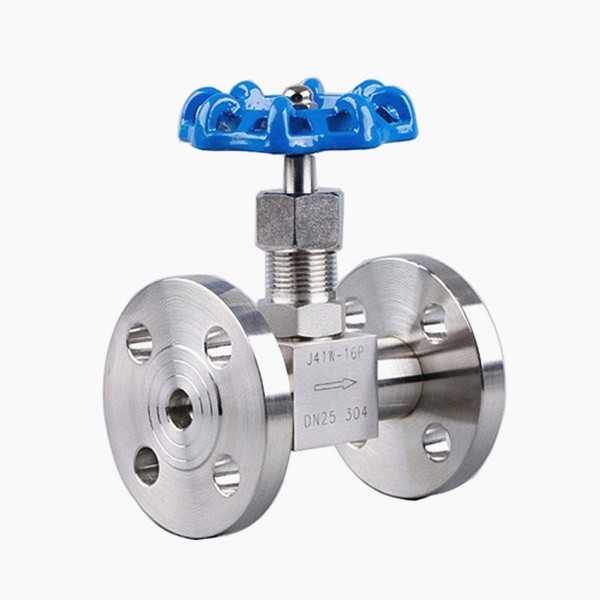

Flanged Needle Valve

Its function is to open or cut off the pipeline access.

Product Description:

Nominal Diameter	DN (mm)		10-25
Nominal Pressure	PN (MPa)		1.6	2.5	4.0	6.4	10	16
Test Pressure	Strength Pressure Test (mpa)		2.4	3.8	6.0	9.6	15	24
	Hydraulic Seal Pressure Test (mpa)		1.9	3.0	4.8	7.6	11	18
	Pneumatic Seal Pressure Test (mpa)		0.5-0.7
Suitable Medium	Oil, water, gas and other non-corrosive or corrosive media (strong corrosive media)
Suitable Temperature Range	<span font-size:14px;text-wrap:wrap;background-color:#ffffff;"="" style="box-sizing: border-box; user-select: text !important; color: rgb(72, 72, 72);">-20℃～+440℃ -70℃～-240℃
Connection Method	Threaded Connection
Thread Type	NPT, BSPT, BSP, DIN
Actuation Method	Manual
Ball or Valve Stem	304,316
Valve Body and Valve Cover	WCB,CF8,CF8M
Inside Diameter	15	20	25		40		50
Inner Box (Single)	5	3	2		2		2
Outer Box (Single)	50	36	24		12		8
